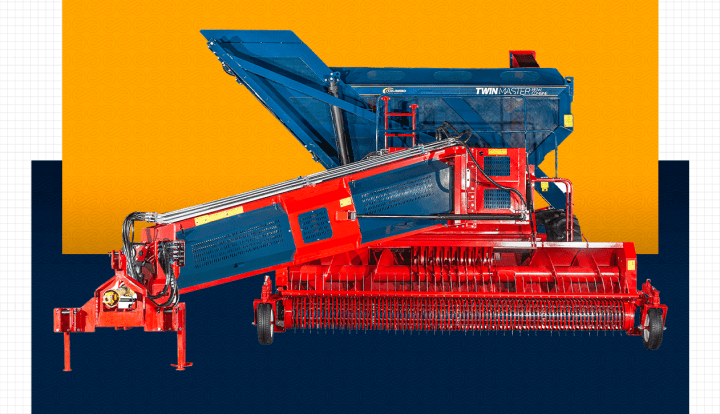

A MODERN MACHINE FOR MORE EFFICIENT HARVESTING
Through technology and a series of innovations guarantees excellent results in operational efficiency, robustness, and superior quality of harvested grains.
New multidirectional header (rigth, left and central)
New quick hitch system
Straw Chopper
OPERATIONAL COMFORT AND FACILITY: the entire drive system of the machine is done through the joystick, making operation easier and providing greater ergonomics for the reparator.
MULTIDIRECTIONAL HEADER: the system of the new header and transmission has a new geometry. This system allows harvesting to be done in three different positions, on the right, left and centrally, i.e., wuth the tractor centered. The header has the advantage of being positioned in the center of the machine, making it easy to move the equipament betweem areas.
TRACK SYSTEM: "FABI" system (low impact operation flow) developed Colombo. Provides a smooth track in various humidity conditions. The differential of this system allows to start the harvest earlier and finish later, increasing the daily work load while ensuring the quality of the harvested product.
| Model | Twin Master Bean Combine | |
| Required engine power | 240 hp | |
| Coupling | Traction beam / 3rd point | |
| Driving | PTO 1,000 rpm | |
| Remote control valves required | 4 with individualized flow | |
| Required output | 160 l/min | |
| Cardans | AEMCO - serie 6.000 |
| Model | Twin Master Bean Combine |
| Support system | Guiding wheel |
| Working width | 15 ft. (4,570 mm) |
| Type of collecting finger | Flexible fingers |
| Model | Twin Master Bean Combine |
| Trail cylinder dyameter | 2x27.56 in (700 mm) concave cylinders |
| Trail cylinder length | 2x141 in (3,600 mm) cylinders |
| Working rotation | 460 rpm |
| Trail sieve hole diameter | 0,8 in (20 mm) |
| Model | Twin Master Bean Combine |
| Grain elevator | 2 foldable |
| Cup quantity and type | 42 polyethylene |
| Cup fixation | 1 central chain |
| Basket capacity | 17.860 lbs. (8,100 kg) (135 bags of 60 kg) |
| Model | Twin Master Bean Combine |
| Vibrating sieve cleaning area | 75 ft² (6,98 m²) |
| Vibrating sieve hole diameter | 0.2 in (5 mm) |
| Output sieve hole | 0.55 in (14 mm) |
| Output sieve oblong | 1/2" x 1" |
| Air flow | Ajustable |
| Fan diameter | 2 x 27.56 in (700 mm) turbines |
| Model | Twin Master Bean Combine |
| Gauges | 11.9 ft (3,630) / 12.9 ft (3,930 mm) |
| Unloading height | 13.12 ft (4,000 mm) |
| Transport height | 14.93 ft (4,550 mm) |
| Length | 39 ft (11,960 mm) |
| Width | 21 ft (6,400 mm) |
| Weight | 22,266 lbs (10,100 kg) |
| Tire size | 30.5 x 26" |
| Model | Twin Master Bean Combine |
| Trail sieve hole diameter | 0.87 in (22 mm) |
| Trail sieve hole diameter | 0.94 in (24 mm) |
